Ethernet Cabling is used to hardware Components With Rj45 Jack.These cable are shielded and unshielded which is Connected with Server,Router,Switch,Hub,Repeater,Computer,Laptop,Modem.

Three Types of Ethernet Cabling

Straight-Through Cable

  • Router,Switch,Hub To PC
  • Router To SWITCH
Straight-Through Cable Color Code
Straight-Through Cable Color Code

Crossover Cable

  • PC TO PC
  • SWITCH TO SWITCH
  • HUB TO HUB
  • ROUTER Direct TO PC
  • HUB TO SWITCH
Crossover Cable Color Code
Crossover Cable Color Code

Rollover Cable

Although rolled over cable isn’t used to connect any Ethernet connections together, you can use a rolled over Ethernet cable to connect a host to a router console serial communication port. If you have a Cisco Router or Switch, you would use this cable to connect your PC running HyperTerminal to the Cisco hardware.

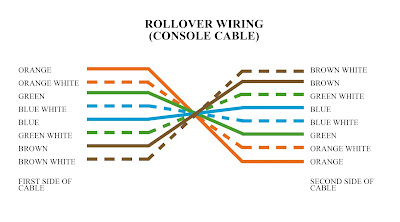

Rollover Cable Color Code
Rollover Cable Color Code
